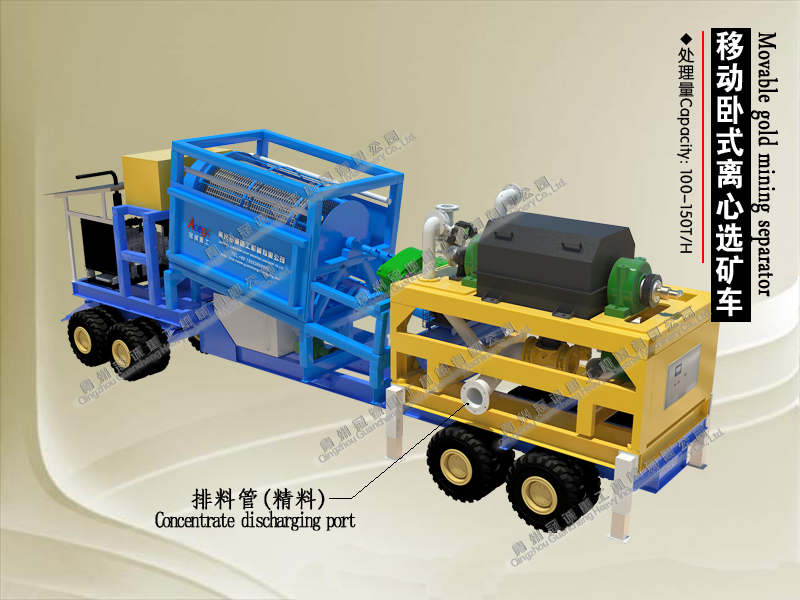

淘金船-移動淘金設備-移動臥式離心選礦車

【移動淘金設備簡介】

本套移動淘金設備為移動臥式離心選礦車，處理量每小時100-150噸，回收率可達到90%以上，是青州冠誠重工機械有限公司根據用戶實際需求及多年淘金機械制作經驗獨立研發設計制作而成，具有移動靈活方便、操作簡單、故障率低、維護保養方便等特點。

該移動淘金設備主要優勢：

1、移動靈活方便，可原地180度轉向，只需要一輛牽引車輛便可隨時輕松移動至工作場地。

2、采用了沙泵+緩沖箱的進料方式，在配合其它淘金設備時無需尋找高低落差、搭建平臺。

3、可以配合多種其它的淘金設備使用，如振動溜槽、鼓動溜槽、抽沙船等，提高處理量與回收率。

4、可輕松改變進料方式：可以把緩沖箱換成大料斗進料方式，安裝輕松方便。

5、臥式全自動排礦離心機在淘金車上使用時工作可靠、穩定，并且由PLC電腦全自動控制，極大的提高了工作效率。

Introduction

This type of movable trommel screen&horizontal centrifuge gold separating car capacity 100-150ton/h,recovery can be high to 90%,is designed by Qingzhou guangcheng heavy industry co.,Ltd from user requirement and our experience over 10years,can be moved and operate easliy, easy maintenace&seldom breakdown.

The advantage:

1.Can move easily,circled in 180 degree,only need one car can be drived to destination

2.Feeding of this type is newly by sand pump&input speed reducing box,no need of frames to hold it while cooperation with other gold machines

3.Can easliy cooperate with other gold machines,such as shaking sulice,suction dredger etc with high recovery

4.The feeding type can be easily changed to be feed hopper as customized

5.The horizontal centrifuge can be used highly effient and steady,controled by PLC with a good performance

【移動淘金設備流程概述】

原料通過沙泵打入緩沖箱內進行減壓，進入滾筒篩內進行清洗篩選分級為：細料與粗料(即廢料)兩種規格，其中廢料直接通過廢料溜槽排入廢料區域；

細料排入細料箱內通過沙泵打入一臺由PLC控制的臥式全自動排礦離心機內進行精選，精料會自動通過精料管道排出，廢料通過廢料管道排出至廢料區域。

The technology process

The raw material is poured into input speed reducing box by sand pump to reduce pressure and feeding speed,then enters into the trommel screen separator to be separating into 2sizes,small and big size which is useless directly geting rid by scrap sluice

The samll size material is discharged into horizontal automatic discharging centrifuge controlled by PLC through sand pump, and the concentrate automatically discharged from concentrate discharge port, scrap material is discharged into the waste area from the scrap material pipe

【技術參數】

名稱	規格	數量	功率	備注
緩沖箱 Input speed reducing box		1套	-
滾筒篩 Trommel screen separator	內徑1.3米，外徑1.6米，凈篩網長度3米 Inner dia.:1.3m,outside dia.:1.6m,screen mesh Length3m	1套	-
底盤 Base plate	重型汽車底盤設計，4軸16條輪胎 Designed from car plate,4 axle 16tyres	1套	-
機械支撐腿 The frame of legs	支撐離心機用 To balance the auto discharging centrifuge	4件	-
離心機 Centrifuge concentrator	1200#臥式全自動排礦離心機 1200#horizontal auto discharging centrifuge	1臺	21.5
沙泵 Sand pump	4inch	1臺	15	供離心機 Working for centrifuge
沙泵 Sand pump	6inch	1臺	18.5	進緩沖箱 Working for input speed reducing box
離心泵 Centrifugal pump	11KW	1臺	11	主供水系統 Working for water system
發電機組 Generation unit	建議使用120KW發電機組 Advise to use 1200KW	1臺	-	選配 Customized
配電柜 Electricity cabint		1套	-
總功率 Total power	66KW
